通常情况下，K8S关于服务的暴露方式主要是通过NodePort方式，通过绑定宿主机的某些端口，然然后再由kube-proxy将其转发给相关的Pod。但存在很多缺陷，service可能有多个，如果每个都绑定一个node端口的话，主机需要开放很多的端口服务进行调用，尤其是防火墙的规则。

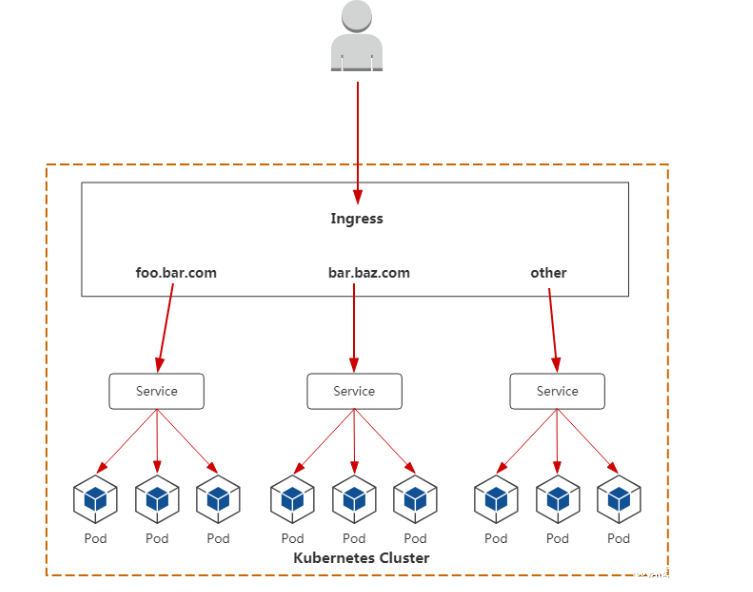

而Ingress就是为进入集群的请求提供路由规则的集合，如下图所示
internet
|
[ Ingress ]
--|-----|--
[ Services ]
ingress包含量大组件：ingress和 ingress Controller:
Ingress解决的是新的服务加入后，域名和服务的对应问题，基本上是一个ingress的对象，通过yaml进行创建和更新进行加载。
Ingress Controller是将Ingress这种变化生成一段Nginx的配置，然后将这个配置通过Kubernetes API写到Nginx的Pod中，然后reload.（注意：写入 nginx.conf 的不是service的地址，而是service backend 的 pod 的地址，避免在 service 在增加一层负载均衡转发）
（二）、Ingress使用
1、下载ingress
下载的地址是https://github.com/kubernetes/ingress-nginx/tree/nginx-0.30.0/deploy 。可以在最后查看See /docs/deploy链接
2、下载部署文件
提供了两种常见的方式：
2.2.1、默认下载最新的yaml文件
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/mandatory.yaml
2.2.2、指定版本号下载对应的yaml
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/nginx-0.30.0/deploy/static/mandatory.yaml
3、部署文件介绍
namespace.yaml。创建一个独立的命名空间 ingress-nginx
configmap.yaml。ConfigMap是存储通用的配置变量的，类似于配置文件，使用户可以将分布式系统中用于不同模块的环境变量统一到一个对象中管理；而它与配置文件的区别在于它是存在集群的“环境”中的，并且支持K8S集群中所有通用的操作调用方式。从数据角度来看，ConfigMap的类型只是键值组，用于存储被Pod或者其他资源对象（如RC）访问的信息。这与secret的设计理念有异曲同工之妙，主要区别在于ConfigMap通常不用于存储敏感信息，而只存储简单的文本信息。ConfigMap可以保存环境变量的属性，也可以保存配置文件。创建pod时，对configmap进行绑定，pod内的应用可以直接引用ConfigMap的配置。相当于configmap为应用/运行环境封装配置。pod使用ConfigMap，通常用于：设置环境变量的值、设置命令行参数、创建配置文件。
default-backend.yaml。如果外界访问的域名不存在的话，则默认转发到default-http-backend这个Service，其会直接返回404：
rbac.yaml。负责Ingress的RBAC授权的控制，其创建了Ingress用到的ServiceAccount、ClusterRole、Role、RoleBinding、ClusterRoleBinding
with-rbac.yaml。是Ingress的核心，用于创建ingress-controller。前面提到过，ingress-controller的作用是将新加入的Ingress进行转化为Nginx的配置
default-backend.yaml。作用是，如果外界访问的域名不存在的话，则默认转发到default-http-backend这个service，会直接返回404;
默认的default-backend.yaml配置文件如下
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: default-http-backend
labels:
app: default-http-backend
namespace: ingress-nginx
spec:
replicas: 1
selector:
matchLabels:
app: default-http-backend
template:
metadata:
labels:
app: default-http-backend
spec:
terminationGracePeriodSeconds: 60
containers:
- name: default-http-backend
# Any image is permissible as long as:
# 1. It serves a 404 page at /
# 2. It serves 200 on a /healthz endpoint
image: gcr.io/google_containers/defaultbackend:1.4
livenessProbe:
httpGet:
path: /healthz
port: 8080
scheme: HTTP
initialDelaySeconds: 30
timeoutSeconds: 5
ports:
- containerPort: 8080
resources:
limits:
cpu: 10m
memory: 20Mi
requests:
cpu: 10m
memory: 20Mi
---
apiVersion: v1
kind: Service
metadata:
name: default-http-backend
namespace: ingress-nginx
labels:
app: default-http-backend
spec:
ports:
- port: 80
targetPort: 8080
selector:
app: default-http-backend
rbac.yaml负责Ingress的RBAC授权的控制，其创建了Ingress用到的ServiceAccount、ClusterRole、Role、RoleBinding、ClusterRoleBinding.配置文件如下：
apiVersion: v1
kind: Namespace
metadata:
name: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
kind: ConfigMap
apiVersion: v1
metadata:
name: nginx-configuration
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
kind: ConfigMap
apiVersion: v1
metadata:
name: tcp-services
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
kind: ConfigMap
apiVersion: v1
metadata:
name: udp-services
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: nginx-ingress-serviceaccount
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
name: nginx-ingress-clusterrole
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
rules:
- apiGroups:
- ""
resources:
- configmaps
- endpoints
- nodes
- pods
- secrets
verbs:
- list
- watch
- apiGroups:
- ""
resources:
- nodes
verbs:
- get
- apiGroups:
- ""
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- events
verbs:
- create
- patch
- apiGroups:
- "extensions"
- "networking.k8s.io"
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- "extensions"
- "networking.k8s.io"
resources:
- ingresses/status
verbs:
- update
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: Role
metadata:
name: nginx-ingress-role
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
rules:
- apiGroups:
- ""
resources:
- configmaps
- pods
- secrets
- namespaces
verbs:
- get
- apiGroups:
- ""
resources:
- configmaps
resourceNames:
# Defaults to "<election-id>-<ingress-class>"
# Here: "<ingress-controller-leader>-<nginx>"
# This has to be adapted if you change either parameter
# when launching the nginx-ingress-controller.
- "ingress-controller-leader-nginx"
verbs:
- get
- update
- apiGroups:
- ""
resources:
- configmaps
verbs:
- create
- apiGroups:
- ""
resources:
- endpoints
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: RoleBinding
metadata:
name: nginx-ingress-role-nisa-binding
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: nginx-ingress-role
subjects:
- kind: ServiceAccount
name: nginx-ingress-serviceaccount
namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
name: nginx-ingress-clusterrole-nisa-binding
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: nginx-ingress-clusterrole
subjects:
- kind: ServiceAccount
name: nginx-ingress-serviceaccount
namespace: ingress-nginx
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-ingress-controller
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
spec:
replicas: 1
selector:
matchLabels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
template:
metadata:
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
annotations:
prometheus.io/port: "10254"
prometheus.io/scrape: "true"
spec:
# wait up to five minutes for the drain of connections
terminationGracePeriodSeconds: 300
serviceAccountName: nginx-ingress-serviceaccount
nodeSelector:
kubernetes.io/os: linux
containers:
- name: nginx-ingress-controller
image: quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.30.0
args:
- /nginx-ingress-controller
- --configmap=$(POD_NAMESPACE)/nginx-configuration
- --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
- --udp-services-configmap=$(POD_NAMESPACE)/udp-services
- --publish-service=$(POD_NAMESPACE)/ingress-nginx
- --annotations-prefix=nginx.ingress.kubernetes.io
securityContext:
allowPrivilegeEscalation: true
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
# www-data -> 101
runAsUser: 101
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
ports:
- name: http
containerPort: 80
protocol: TCP
- name: https
containerPort: 443
protocol: TCP
livenessProbe:
failureThreshold: 3
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 10
readinessProbe:
failureThreshold: 3
httpGet:
path: /healthz
port: 10254
scheme: HTTP
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 10
lifecycle:
preStop:
exec:
command:
- /wait-shutdown
---
apiVersion: v1
kind: LimitRange
metadata:
name: ingress-nginx
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
spec:
limits:
- min:
memory: 90Mi
cpu: 100m
type: Container
4、部署ingress
[root@k8s-master ingress]# kubectl apply -f ingress.yaml
namespace/ingress-nginx created
configmap/nginx-configuration created
configmap/tcp-services created
configmap/udp-services created
serviceaccount/nginx-ingress-serviceaccount created
deployment.apps/nginx-ingress-controller created
limitrange/ingress-nginx created
unable to recognize "ingress.yaml": no matches for kind "ClusterRole" in version "rbac.authorization.k8s.io/v1beta1"
unable to recognize "ingress.yaml": no matches for kind "Role" in version "rbac.authorization.k8s.io/v1beta1"
unable to recognize "ingress.yaml": no matches for kind "RoleBinding" in version "rbac.authorization.k8s.io/v1beta1"
unable to recognize "ingress.yaml": no matches for kind "ClusterRoleBinding" in version "rbac.authorization.k8s.io/v1beta1"
[root@k8s-master ingress]# kubectl get pod -n ingress-nginx -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-ingress-controller-65886f4f5d-2wk5v 0/1 ContainerCreating 0 24s <none> k8s-node01 <none> <none>
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get pod -n ingress-nginx -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-ingress-controller-65886f4f5d-2wk5v 0/1 ContainerCreating 0 26s <none> k8s-node01 <none> <none>
